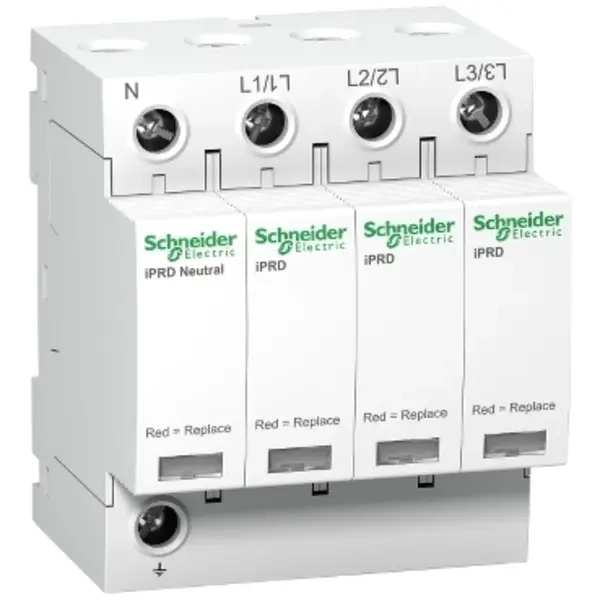

Odvodnik prenapona iPRD20, 3P+N, 350V

Cijena (bez PDV-a)

97,20

Šifra artikla: A9L20600

Raspoloživost: Na stanju

Additional information

Tip

Odvodnik

Broj polova

3P+N

Imax (kA)

20

Mounting method DIN rail (top hat rail) 35 mm
With remote signalling contact No
Construction size 8 modular spacing
Voltage protection level 1
Type of poles 3+N/PE
Max. continuous voltage AC 350
Nominal discharge surge current (8/20) 5
Nominal voltage AC 400
Nominal voltage DC 0
System configuration TN-S
Category type 2 Yes
Voltage protection level L-N 1
Signalling at the device Optic
Max. continuous voltage DC 0
Degree of protection (IP) IP20
Short-circuit-proof Yes
Max. PV-voltage 0
Voltage protection level N-PE 1
Integrated backup fuse No
Max. conductor cross section solid (solid, stranded) 35
Max. conductor cross section flexible (fine-strand) 35
