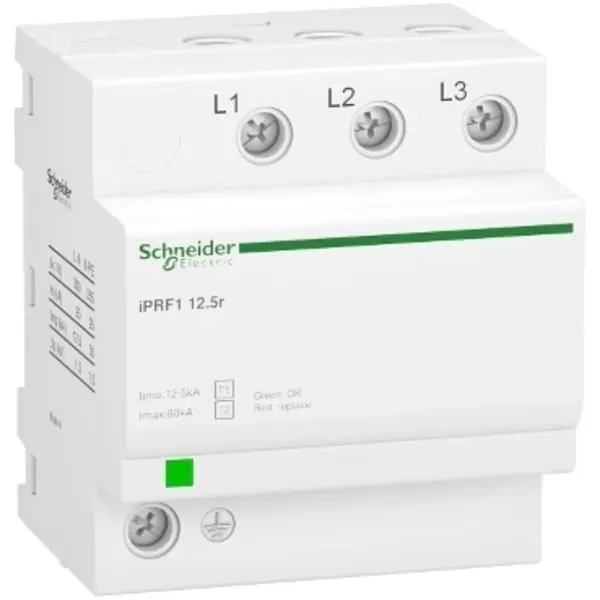

ODVODNIK PREN. PRF1 12,5R 3P TIP1+2

Additional information

Tip	Odvodnik

Mounting method	DIN rail (top hat rail) 35 mm
With remote signalling contact	Yes
Construction size	8 modular spacing
Voltage protection level	2
Type of poles	3
Max. continuous voltage AC	350
Nominal discharge surge current (8/20)	25
Nominal voltage AC	400
Nominal voltage DC	0
System configuration	TN-C
Category type 2	Yes
Voltage protection level L-N	0
Signalling at the device	Optic
Max. continuous voltage DC	0
Degree of protection (IP)	IP20
Short-circuit-proof	No
Max. PV-voltage	0
Voltage protection level N-PE	0
Integrated backup fuse	No
Max. conductor cross section solid (solid, stranded)	35
Max. conductor cross section flexible (fine-strand)	25
