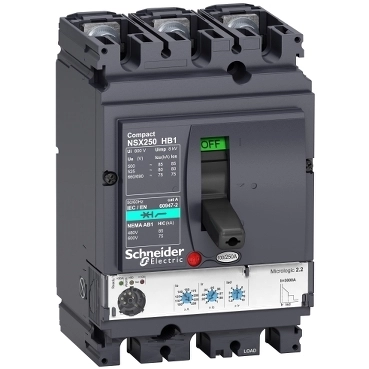

NSX250HB1 PREKIDAČ 2.2 250A 3P

Additional information

Tip	Pribor

Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	250
Number of poles	3
Overload release current setting	225 - 250
Number of auxiliary contacts as change-over contact	0
Rated voltage	690 - 690
Degree of protection (IP)	IP40
Position of connection for main current circuit	Front side
Motor drive integrated	No
Type of electrical connection of main circuit	Screw connection
Type of control element	Toggle
Switched-off indicator available	No
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz	0
Adjustment range short-term delayed short-circuit release	375 - 2500
Adjustment range undelayed short-circuit release	3000 - 3000
Suitable for DIN rail (top hat rail) mounting	No
Integrated earth fault protection	No
Motor drive optional	Yes
With under voltage release	No
Device construction	Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional	No
Complete device with protection unit	Yes
