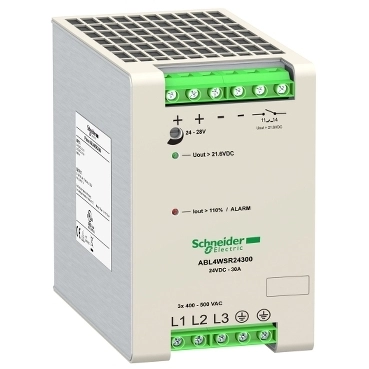

NAPAJANJE REG KOMPAKT 3-F 24V 30A

Additional information

Tip	Pribor

Width	80
Height	127
Depth	139
Built-in height	0
Power consumption	0
Built-in width	0
Modular version	Yes
Suitable for safety functions	Yes
Width in number of modular spacings	0
Voltage type of supply voltage	AC/DC
Power output	720
Output voltage stabilized	Yes
Type of electric connection	Screw connection
Rail mounting possible	Yes
Wall mounting possible	No
Stabilized	Yes
Degree of protection (IP)	IP20
Direct mounting possible	No
1st secondary output voltage	24 - 24
2nd secondary output voltage	0 - 0
3rd secondary output voltage	0 - 0
Secondary voltage adjustable	Yes
Rated supply voltage at AC 50 Hz	400 - 500
Rated supply voltage at AC 60 Hz	400 - 500
Rated supply voltage at DC	507 - 770
Short-circuit-proof	Yes
Performance level acc. to EN ISO 13849-1	None
Max. output current 1	30
Max. output current 2	0
Max. output current 3	0
Nominal value output voltage 1	24
Nominal value output voltage 2	0
Nominal value output voltage 3	0
Nominal value output current 1	30
Nominal value output current 2	0
Nominal value output current 3	0
SIL according to IEC 61508	None
