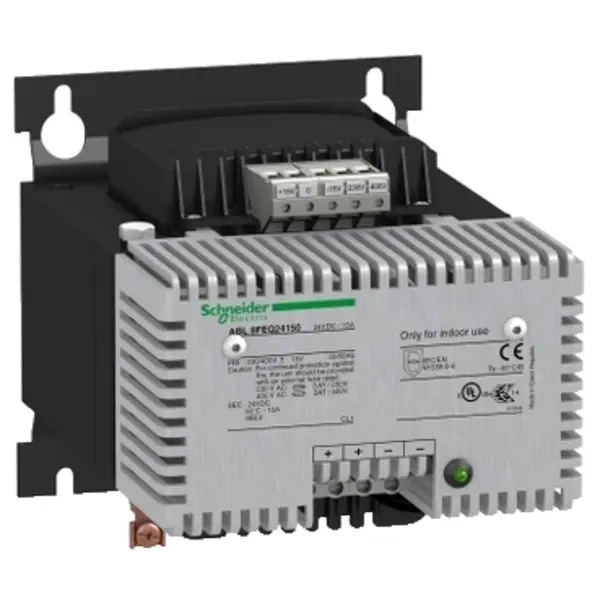

NAPAJANJE ISPR. 24V 15A

Width	135
Height	185
Depth	138
Built-in height	0
Power consumption	0
Built-in width	0
Modular version	No
Suitable for safety functions	Yes
Width in number of modular spacings	0
Voltage type of supply voltage	AC
Power output	360
Output voltage stabilized	Yes
Type of electric connection	Screw connection
Rail mounting possible	No
Wall mounting possible	Yes
Stabilized	Yes
Degree of protection (IP)	IP20
Direct mounting possible	Yes
1st secondary output voltage	24 - 24
2nd secondary output voltage	0 - 0
3rd secondary output voltage	0 - 0
Secondary voltage adjustable	No
Rated supply voltage at AC 50 Hz	230 - 400
Rated supply voltage at AC 60 Hz	230 - 400
Rated supply voltage at DC	0 - 0
Short-circuit-proof	Yes
Performance level acc. to EN ISO 13849-1	None
Max. output current 1	28
Max. output current 2	0
Max. output current 3	0
Nominal value output voltage 1	24
Nominal value output voltage 2	0
Nominal value output voltage 3	0
Nominal value output current 1	15
Nominal value output current 2	0
Nominal value output current 3	0
SIL according to IEC 61508	None
