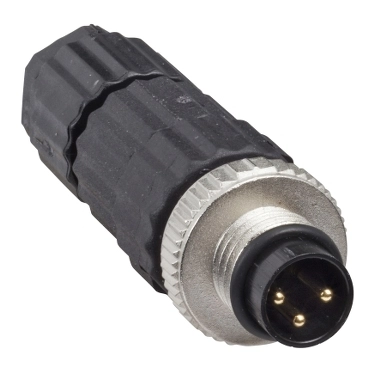

Muški, M8, 3, pinski, ravni konektor, kabelska uvodnica M9,5 x 1

Cijena (bez PDV-a)

12,32

Šifra artikla: XZCC8MDM30V

Raspoloživost: Na upit

Additional information

Tip

Oprema

Locking mechanism None
Nominal rated voltage 60
Contact type Pin
Material housing Other
Ambient temperature -40 - 85
Operation temperature -40 - 85
Inflammability class of insulation material acc. with UL94 Other
Type of electric connection Other
Material of contact surface
Thread size M 0
Over voltage category
Pollution degree
Type of housing Straight
Category for Ethernet cable
Connectable conductor cross section solid-core 0 - 0.25
Connectable conductor cross section fine-strand with cable end sleeve 0 - 0.25
Connectable conductor cross section fine-strand without cable end sleeve 0 - 0.25
Connectable conductor cross section multi-wired 0 - 0.25
With interlocking device No
Degree of protection (IP), mounted IP67
With protective conductor No
Diameter connector 0
Material insulation body Other
Material contact
Coding of M12-round connectors
Rated current In 4
Number of plug-in contacts 3
