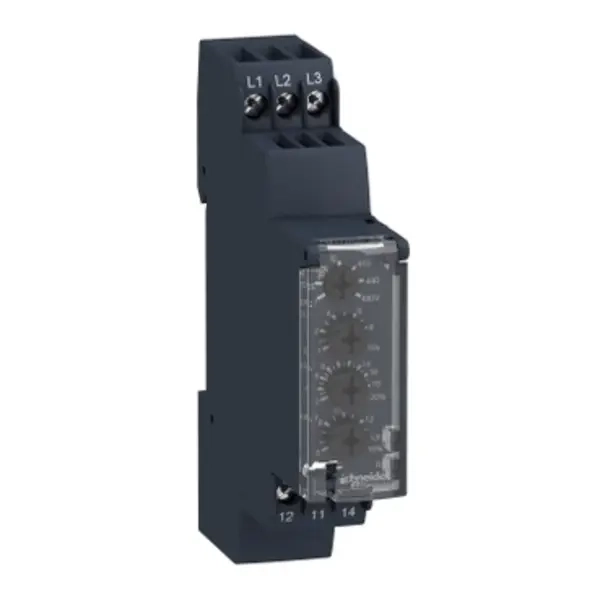

Multifunkcijski upravljački relej RM17-TE, raspon 183..528 V AC

Additional information

Tip	Multifunkcijski relej

Width	18
Height	90
Depth	72
Voltage measurement range	183 - 528
With detachable clamps	No
Phase sequence monitoring	Yes
Phase failure monitoring	Yes
Function under voltage detection	Yes
Function over voltage detection	Yes
Phase imbalance monitoring	Yes
Type of electric connection	Screw connection
Rated control supply voltage Us at AC 50HZ	208 - 480
Rated control supply voltage Us at AC 60HZ	208 - 480
Rated control supply voltage Us at DC	0 - 0
Max. permitted delay-on energization time	10
Min. adjustable delay-on energization time	0
Max. permitted off-delay time	10
Min. adjustable off-delay time	0
Voltage type for actuating	AC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Number of contacts as change-over contact	1
