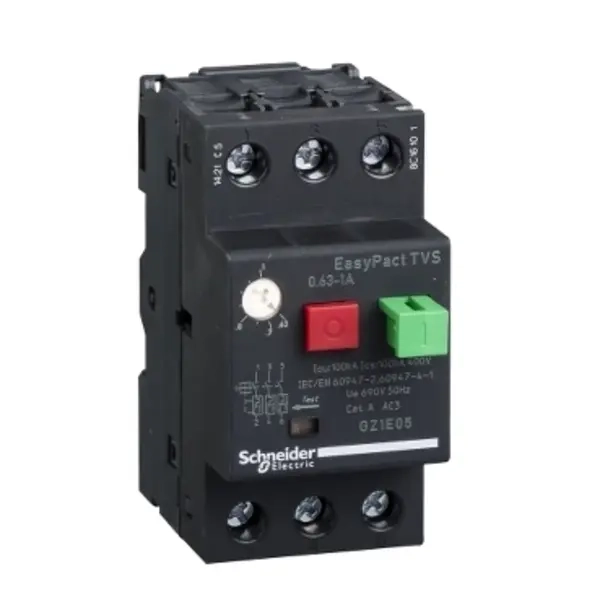

Motorski prekidač GZ1, termomagnetski, 0,63-1A, vijčani

Additional information

Tip	Motorska zaštitna sklopka

Width	45
Height	89
Depth	78
Thermal protection	Yes
Rated operation power at AC-3, 400 V	0
With integrated auxiliary switch	No
Rated permanent current Iu	0
With integrated under voltage release	No
Number of poles	3
Rated operating voltage	690 - 690
Overload release current setting	0.63 - 1
Degree of protection (IP)	IP20
Type of electrical connection of main circuit	Screw connection
Type of control element	Push button
Switch off technique	Thermomagnetic
Rated operation power at AC-3, 230 V	0
Rated short-circuit breaking capacity lcu at 400 V, AC	100
Adjustment range undelayed short-circuit release	- - -
Phase failure sensitive	No
Device construction	Complete device in housing
