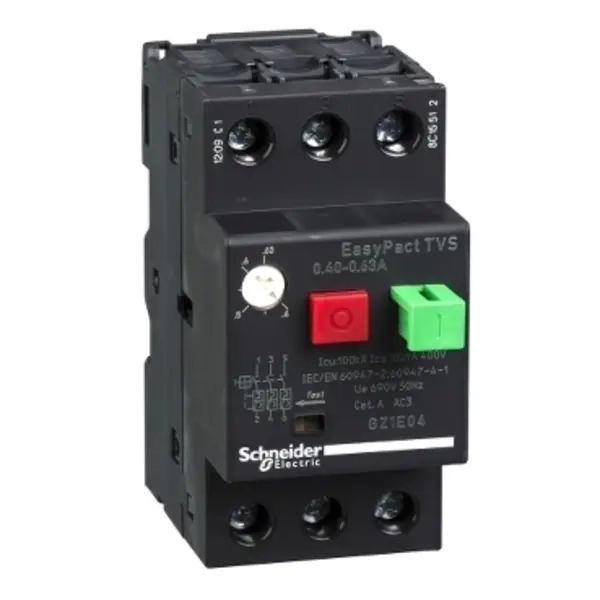

Motorski prekidač GZ1, termomagnetski, 0,40-0,63A, vijčani

Cijena (bez PDV-a)

29,32

Šifra artikla: GZ1E04

Raspoloživost: Na upit

Additional information

Tip

Motorska zaštitna sklopka

Width 45
Height 89
Depth 78
Thermal protection Yes
Rated operation power at AC-3, 400 V 0
With integrated auxiliary switch No
Rated permanent current Iu 0
With integrated under voltage release No
Number of poles 3
Rated operating voltage 690 - 690
Overload release current setting 0.4 - 0.63
Degree of protection (IP) IP20
Type of electrical connection of main circuit Screw connection
Type of control element Push button
Switch off technique Thermomagnetic
Rated operation power at AC-3, 230 V 0
Rated short-circuit breaking capacity lcu at 400 V, AC 100
Adjustment range undelayed short-circuit release - - -
Phase failure sensitive No
Device construction Complete device in housing
