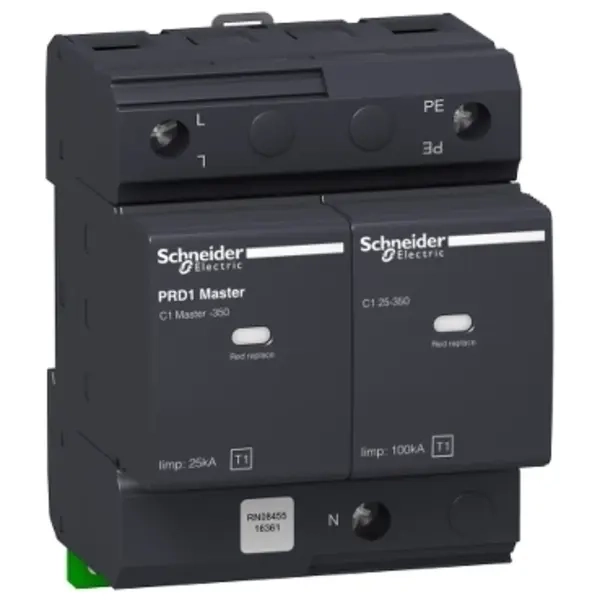

Modularni odvodnik prenapona PRD1 Master, 1 pol + N, 350 V, s daljinskim prijenosom

Additional information

Tip	Odvodnik

Mounting method	DIN rail (top hat rail) 35 mm
With remote signalling contact	Yes
Construction size	8 modular spacing
Voltage protection level	3
Type of poles	1+N/PE
Max. continuous voltage AC	350
Nominal discharge surge current (8/20)	100
Nominal voltage AC	400
Nominal voltage DC	0
System configuration	TN-S, TT
Category type 2	Yes
Voltage protection level L-N	2
Signalling at the device	Optic
Max. continuous voltage DC	0
Degree of protection (IP)	IP20
Short-circuit-proof	No
Max. PV-voltage	0
Voltage protection level N-PE	2
Integrated backup fuse	Yes
Max. conductor cross section solid (solid, stranded)	35
Max. conductor cross section flexible (fine-strand)	35
