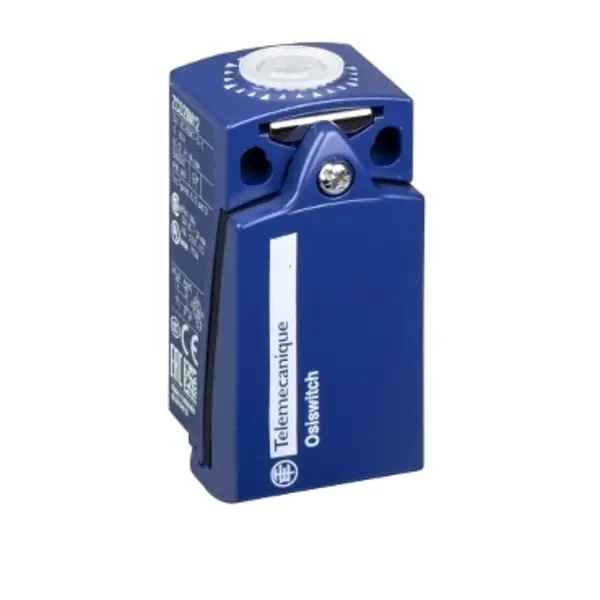

METALNO KUĆIŠTE, 1 NO 1 NO, SLWA POZLAĆENO C

Cijena (bez PDV-a)

42,95

Šifra artikla: ZCD68

Raspoloživost: Na upit

Additional information

Tip

Tjelo krajnje sklopke

Switching function Quick-break switch
Rated operation current Ie at AC-15, 230 V 1
Rated operation current Ie at DC-13, 230 V 0
Material housing Metal
Suitable for safety functions No
Coating housing Other
With status indication No
Type of interface for safety communication None
Type of electric connection Other
Explosion safety category for gas Other
Explosion safety category for dust None
Construction type housing Cuboid
Degree of protection (IP) IP66/IP67
Forced opening Yes
Number of safety auxiliary contacts 0
Type of control element None
Type of interface None
Output electronic No
Rated operation current Ie at AC-15, 125 V 0
Rated operation current Ie at AC-15, 24 V 0
Rated operation current Ie at DC-13, 125 V 0
Rated operation current Ie at DC-13, 24 V 0
Width sensor 31
Diameter sensor 0
Height of sensor 65
Length of sensor 30
Ambient temperature during operating -25 - 70
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 2
Number of contacts as change-over contact 0
Housing according to norm DIN EN 50047
Alignment of the control element Other
