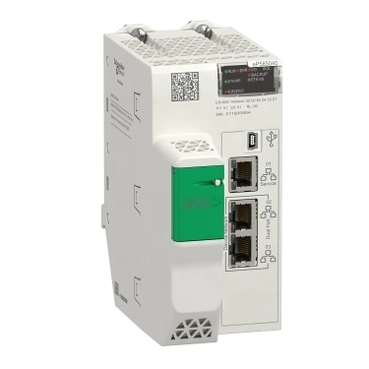

M580 PROCESSOR LEVEL 5 FOR R IO
Cijena (bez PDV-a)
10.926,00€
Raspoloživost: Na upit
| Width | 0 |
|---|---|
| Model | Modular |
| Height | 0 |
| Depth | 0 |
| With display | No |
| Suitable for safety functions | Yes |
| Number of digital inputs | 5,120 |
| Number of digital outputs | 5,120 |
| Number of analogue inputs | 1,280 |
| Number of analogue outputs | 1,280 |
| Voltage type of supply voltage | DC |
| Type of memory | RAM |
| Memory size | 24,576 |
| Processing time (1K, binary operation) | 0 |
| Max. number of addressable analogue I/O-ports | 1,280 |
| Max. number of addressable digital I/O-ports | 5,120 |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 3 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | No |
| Additional program memory possible | Yes |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for ASI | Yes |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for MODBUS | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Redundancy | No |
| Rail mounting possible | No |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | ATEX dust-ex-protection, Cat. 3D |
| System accessory | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Category according to EN 954-1 | 1 |
| Number of HW-interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Front build in possible | No |
| Rack-assembly possible | Yes |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | Yes |
| Number of relay outputs | 0 |
| Max. number of time switches | 0 |
| Performance level acc. to EN ISO 13849-1 | None |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supply voltage AC 50 Hz | 0 - 0 |
| Supply voltage AC 60 Hz | 0 - 0 |
| Supply voltage DC | 24 - 24 |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| SIL according to IEC 61508 | None |
