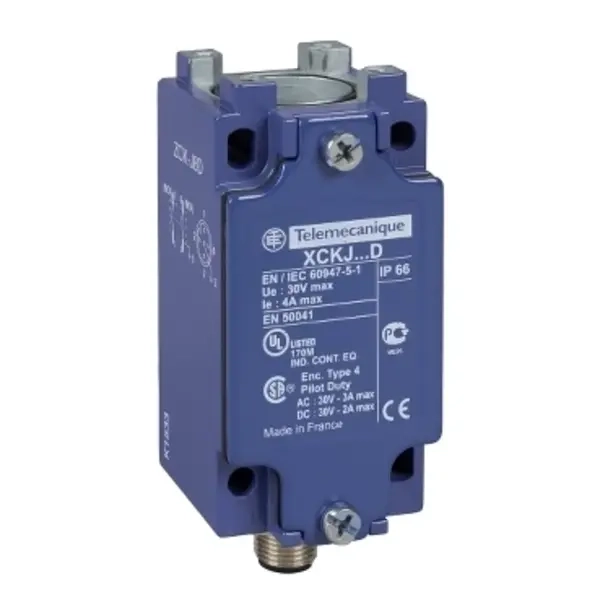

Kućište za graničnu sklopku ZCKJ, fiksno, bez zaslona, 1 NC + 1 NO, spori isklop, M12

Additional information

Tip	Tjelo krajnje sklopke

Switching function	Slow-action switch with overlapping
Rated operation current Ie at AC-15, 230 V	3
Rated operation current Ie at DC-13, 230 V	0
Material housing	Metal
Suitable for safety functions	No
Coating housing	Other
With status indication	No
Type of interface for safety communication	None
Type of electric connection	Other
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Degree of protection (IP)	IP65
Forced opening	Yes
Number of safety auxiliary contacts	0
Type of control element	None
Type of interface	None
Output electronic	No
Rated operation current Ie at AC-15, 125 V	0
Rated operation current Ie at AC-15, 24 V	0
Rated operation current Ie at DC-13, 125 V	0
Rated operation current Ie at DC-13, 24 V	0
Width sensor	40
Diameter sensor	0
Height of sensor	89
Length of sensor	44
Ambient temperature during operating	-25 - 70
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0
Housing according to norm	DIN EN 50041
Alignment of the control element	Other
