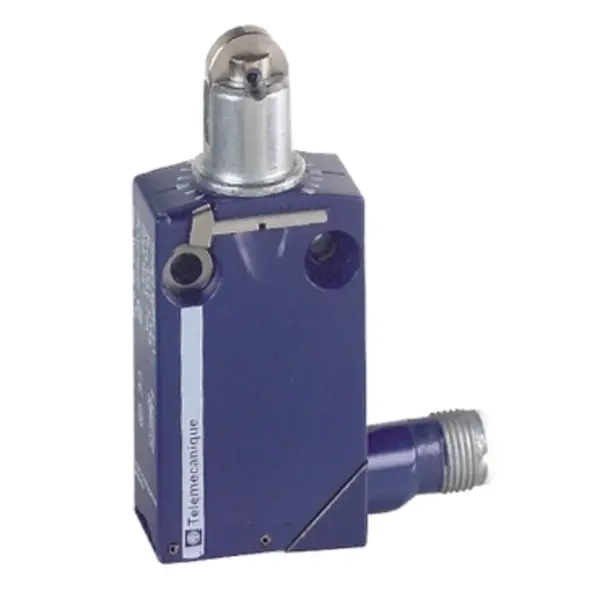

Krajnja sklopka XCMD, utisni klip s čeličnim kotačićem, 1 C/O, brzi, M12

Additional information

Tip	Krajnja sklopka

Switching function	Quick-break switch
Rated operation current Ie at AC-15, 230 V	2
Rated operation current Ie at DC-13, 230 V	0
Material housing	Metal
Suitable for safety functions	No
Coating housing	Other
With status indication	No
Type of interface for safety communication	None
Type of electric connection	Plug-in connection M12
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Other
Degree of protection (IP)	IP66/IP67
Forced opening	Yes
Number of safety auxiliary contacts	0
Type of control element	Roller cam
Type of interface	None
Output electronic	No
Rated operation current Ie at AC-15, 125 V	0
Rated operation current Ie at AC-15, 24 V	0
Rated operation current Ie at DC-13, 125 V	0
Rated operation current Ie at DC-13, 24 V	0
Width sensor	30
Diameter sensor	0
Height of sensor	50
Length of sensor	16
Ambient temperature during operating	-25 - 70
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Number of contacts as change-over contact	1
Housing according to norm	Other
Alignment of the control element	Roller cam straight
