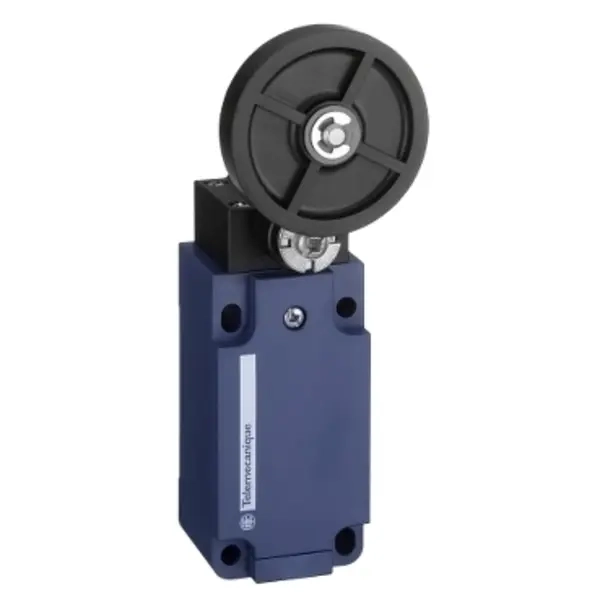

Krajnja sklopka XCKS, poluga s termoplast.kotač. Ø 50mm, 1 NC + 1 NO-spori-Pg 13

Cijena (bez PDV-a)

48,20

Šifra artikla: XCKS539

Raspoloživost: Na upit

Additional information

Tip

Krajnja sklopka

Switching function Slow-action switch
Rated operation current Ie at AC-15, 230 V 3
Rated operation current Ie at DC-13, 230 V 0
Material housing Plastic
Suitable for safety functions No
Coating housing Other
With status indication No
Type of interface for safety communication None
Type of electric connection Cable entry PG
Explosion safety category for gas None
Explosion safety category for dust None
Construction type housing Cuboid
Degree of protection (IP) IP65
Forced opening No
Number of safety auxiliary contacts 0
Type of control element Roller lever
Type of interface None
Output electronic No
Rated operation current Ie at AC-15, 125 V 0
Rated operation current Ie at AC-15, 24 V 0
Rated operation current Ie at DC-13, 125 V 0
Rated operation current Ie at DC-13, 24 V 0
Width sensor 50
Diameter sensor 0
Height of sensor 143
Length of sensor 65
Ambient temperature during operating -25 - 70
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Housing according to norm DIN EN 50041
Alignment of the control element Other
