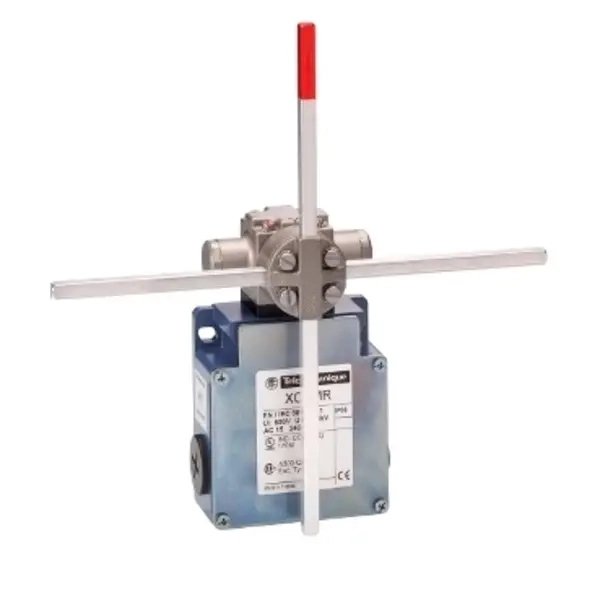

Krajnja sklopka XCKMR, nepom. poluga s ukriženim šipkama od 6mm, 2x(2 NC), spora, Pg 13

Additional information

Tip	Krajnja sklopka

Switching function	Other
Rated operation current Ie at AC-15, 230 V	3
Rated operation current Ie at DC-13, 230 V	1
Material housing	Metal
Suitable for safety functions	No
Coating housing	Other
With status indication	No
Type of interface for safety communication	None
Type of electric connection	Cable entry PG
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Special construction
Degree of protection (IP)	IP66
Forced opening	Yes
Number of safety auxiliary contacts	0
Type of control element	Other
Type of interface	None
Output electronic	No
Rated operation current Ie at AC-15, 125 V	0
Rated operation current Ie at AC-15, 24 V	0
Rated operation current Ie at DC-13, 125 V	0
Rated operation current Ie at DC-13, 24 V	0
Width sensor	0
Diameter sensor	0
Height of sensor	0
Length of sensor	0
Ambient temperature during operating	-25 - 70
Number of contacts as normally closed contact	4
Number of contacts as normally open contact	0
Number of contacts as change-over contact	0
Housing according to norm	Other
Alignment of the control element	Other
