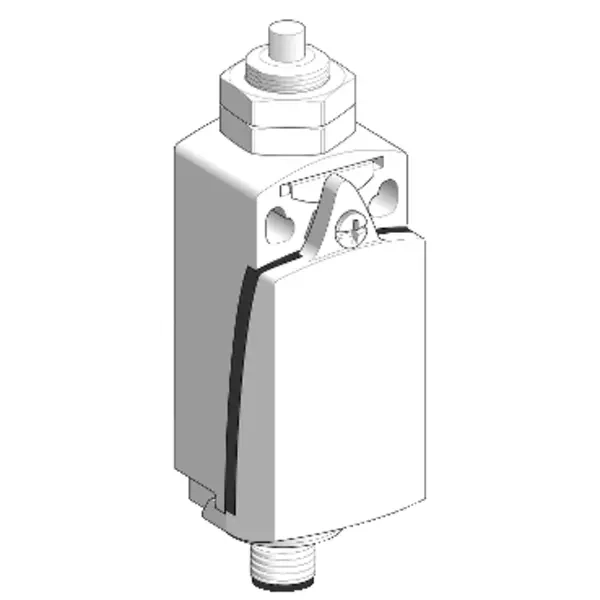

Krajnja sklopka XCKD, M18 utisni klip s metalnim vrhom, 1 NC + 1 NO, brzi, M12

Cijena (bez PDV-a)

59,34

Šifra artikla: XCKD21H0M12

Raspoloživost: Na upit

Additional information

Tip

Krajnja sklopka

Switching function Quick-break switch
Rated operation current Ie at AC-15, 230 V 3
Rated operation current Ie at DC-13, 230 V 0
Material housing Metal
Suitable for safety functions No
Coating housing Other
With status indication No
Type of interface for safety communication None
Type of electric connection Plug-in connection M12
Explosion safety category for gas None
Explosion safety category for dust None
Construction type housing Cuboid
Degree of protection (IP) IP66/IP67
Forced opening Yes
Number of safety auxiliary contacts 0
Type of control element Plunger
Type of interface None
Output electronic No
Rated operation current Ie at AC-15, 125 V 0
Rated operation current Ie at AC-15, 24 V 0
Rated operation current Ie at DC-13, 125 V 0
Rated operation current Ie at DC-13, 24 V 0
Width sensor 31
Diameter sensor 0
Height of sensor 65
Length of sensor 30
Ambient temperature during operating -25 - 70
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Housing according to norm DIN EN 50047
Alignment of the control element Other
