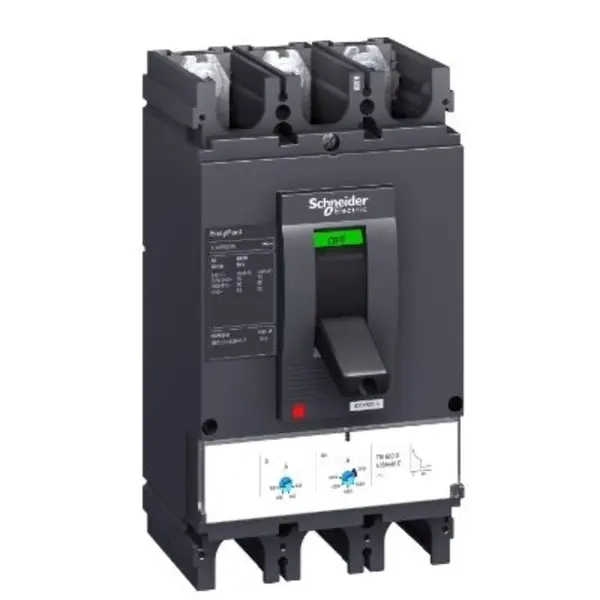

Kompaktni prekidač Easypact CVS – CVS630F TM500D prekidač – 3P/3d

Additional information

Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	630
Number of poles	3
Overload release current setting	0 - 500
Number of auxiliary contacts as change-over contact	0
Rated voltage	440 - 440
Degree of protection (IP)	IP40
Position of connection for main current circuit	Front side
Motor drive integrated	No
Type of electrical connection of main circuit	Screw connection
Type of control element	Toggle
Switched-off indicator available	Yes
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz	36
Adjustment range short-term delayed short-circuit release	- - -
Adjustment range undelayed short-circuit release	3150 - 6300
Suitable for DIN rail (top hat rail) mounting	No
Integrated earth fault protection	No
Motor drive optional	No
With under voltage release	Yes
Device construction	Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional	No
Complete device with protection unit	Yes
