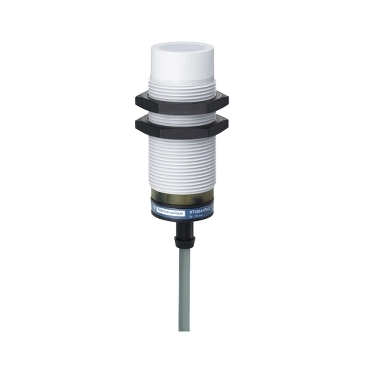

Kapacitivni senzor, XT1, cilindrični M30, plastični, Sn 15 mm, kabel od 2 m

Additional information

Voltage type	AC
Cascadable	No
Material housing	Plastic
Suitable for safety functions	No
Coating housing	Other
Switching frequency	25
Switching distance	15
Number of semiconductor outputs with signalling function	1
Number of contact energized outputs with signalling function	0
Number of protected semiconductor outputs	0
Number of protected contact energized outputs	0
Type of interface for safety communication	None
Type of electric connection	Cable
Type of switching output	Two-wire
Type of switch function	Other
Rated control supply voltage Us at AC 50HZ	24 - 240
Rated control supply voltage Us at AC 60HZ	24 - 240
Rated control supply voltage Us at DC	0 - 0
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cylinder, screw-thread
Max. output current at protected output	300
Mechanical mounting condition for sensor	Not flat
With monitoring function downstream switching devices	No
Supply voltage	24 - 240
Category according to EN 954-1	1
Type of actuation	Metallic Target
Type of interface	None
Width sensor	0
Compression-resistant	No
Diameter sensor	30
Height of sensor	0
Length of sensor	75
Performance level acc. to EN ISO 13849-1	None
SIL according to IEC 61508	None
