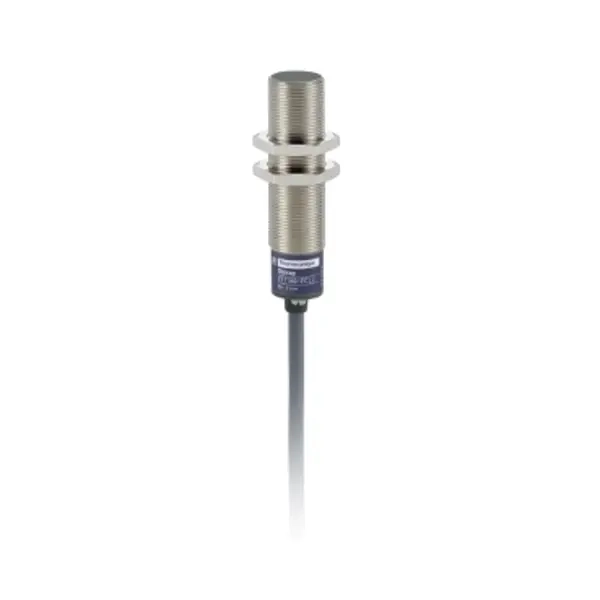

Kapacitivni senzor, XT1, cilindrični M18, mjedeni, Sn5 mm, kabel od 2 m

Additional information

Voltage type	AC
Cascadable	No
Material housing	Metal
Suitable for safety functions	No
Coating housing	Nickel-plated
Switching frequency	25
Switching distance	5
Number of semiconductor outputs with signalling function	1
Number of contact energized outputs with signalling function	0
Number of protected semiconductor outputs	0
Number of protected contact energized outputs	0
Type of interface for safety communication	None
Type of electric connection	Cable
Type of switching output	Two-wire
Type of switch function	Other
Rated control supply voltage Us at AC 50HZ	24 - 240
Rated control supply voltage Us at AC 60HZ	24 - 240
Rated control supply voltage Us at DC	0 - 0
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cylinder, screw-thread
Max. output current at protected output	330
Mechanical mounting condition for sensor	Concise
With monitoring function downstream switching devices	No
Supply voltage	24 - 240
Category according to EN 954-1	1
Type of actuation	Metallic Target
Type of interface	None
Width sensor	0
Compression-resistant	No
Diameter sensor	18
Height of sensor	0
Length of sensor	70
Performance level acc. to EN ISO 13849-1	None
SIL according to IEC 61508	None
