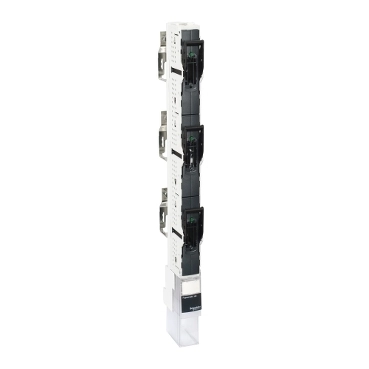

ISFL160A – 185 mm jednopolna sab. izmjenjiva s vijcima M8 i podignutim nosačem

Additional information

Tip	Rastavna sklopka

Rated permanent current Iu	160
Number of poles	3
Conditioned rated short-circuit current Iq	0
Degree of protection (IP), front side	IP20
Suitable for fuses	NH000, NH00
Motor drive integrated	No
Type of electrical connection of main circuit	Screw connection
Version as emergency stop installation	No
Type of control element	Rocker lever
Version as main switch	Yes
Version as safety switch	Yes
Rated operation power at AC-23, 400 V	0
Rated short-time withstand current lcw	0
Suitable for ground mounting	Yes
Suitable for front mounting 4-hole	Yes
Suitable for busbar mounting	Yes
Max. rated operation voltage Ue AC	690
With error protection	Yes
Motor drive optional	No
Position control element	Front side
