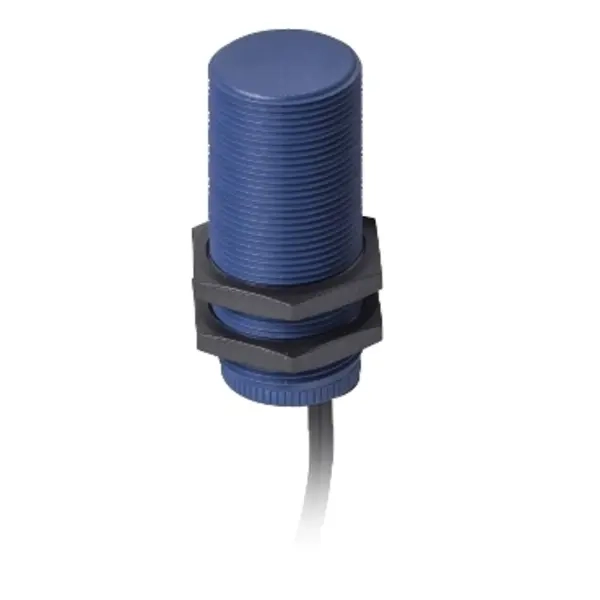

IPS NAMUR EX M12 SN=4mm 7-12VDC 2WIR 2

Cijena (bez PDV-a)

74,48

Šifra artikla: XSPN04122EX

Raspoloživost: Na upit

Additional information

Tip

Pribor

Materijal

Plastični

Sn

4mm

Napajanje (V)

7..12 V DC

Priključak

kabel 2m

Voltage type DC
Cascadable No
Material housing Plastic
Suitable for safety functions No
Coating housing Other
Switching frequency 400
Switching distance 4
Number of semiconductor outputs with signalling function 1
Number of contact energized outputs with signalling function 0
Number of protected semiconductor outputs 0
Number of protected contact energized outputs 0
Type of interface for safety communication None
Type of electric connection Cable
Type of switching output NAMUR
Type of switch function Breaker contact
Rated control supply voltage Us at AC 50HZ 0 - 0
Rated control supply voltage Us at AC 60HZ 0 - 0
Rated control supply voltage Us at DC 7 - 12
Explosion safety category for gas None
Explosion safety category for dust Other
Construction type housing Cylinder, screw-thread
Max. output current at protected output 1
Mechanical mounting condition for sensor Not flat
With monitoring function downstream switching devices No
Supply voltage 7 - 12
Category according to EN 954-1 1
Type of actuation Metallic Target
Type of interface None
Width sensor 0
Compression-resistant No
Diameter sensor 12
Height of sensor 0
Length of sensor 39
Performance level acc. to EN ISO 13849-1 None
Interference resistance to magnetic fields Immune against magnetic DC-field
SIL according to IEC 61508 None
