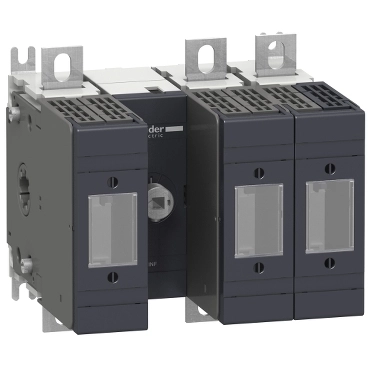

INFC RASTAVNA SKLOPKA 3P DIN 00/000 160A

Additional information

Tip	Pribor

Rated permanent current Iu	160
Number of poles	3
Conditioned rated short-circuit current Iq	5
Degree of protection (IP), front side	IP20
Suitable for fuses	NH000, NH00
Motor drive integrated	No
Type of electrical connection of main circuit	Screw connection
Version as emergency stop installation	Yes
Type of control element	Long turning handle
Version as main switch	Yes
Version as safety switch	Yes
Rated operation power at AC-23, 400 V	0
Rated short-time withstand current lcw	5
Suitable for ground mounting	No
Suitable for front mounting 4-hole	No
Suitable for busbar mounting	No
Max. rated operation voltage Ue AC	690
With error protection	Yes
Motor drive optional	No
Position control element	Front side
