Additional information

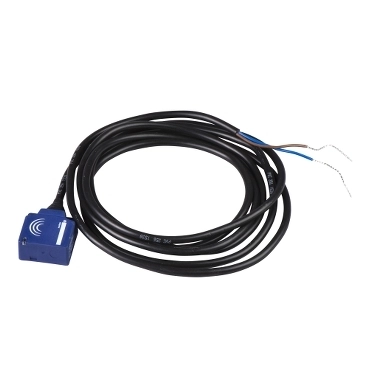

Tip | Induktivni senzor |
---|---|
Materijal | PBT |
Sn | 10mm |
Napajanje (V) | 24 V DC |
Priključak | kabel od 2 m |
93,84€
Raspoloživost: Na upit
Tip | Induktivni senzor |
---|---|
Materijal | PBT |
Sn | 10mm |
Napajanje (V) | 24 V DC |
Priključak | kabel od 2 m |
Voltage type | DC |
---|---|
Cascadable | No |
Material housing | Plastic |
Suitable for safety functions | No |
Coating housing | Other |
Switching frequency | 1,000 |
Switching distance | 10 |
Number of semiconductor outputs with signalling function | 1 |
Number of contact energized outputs with signalling function | 0 |
Number of protected semiconductor outputs | 0 |
Number of protected contact energized outputs | 0 |
Type of interface for safety communication | None |
Type of electric connection | Cable |
Type of switching output | Two-wire |
Type of switch function | Normally open contact |
Rated control supply voltage Us at AC 50HZ | 0 - 0 |
Rated control supply voltage Us at AC 60HZ | 0 - 0 |
Rated control supply voltage Us at DC | 12 - 24 |
Explosion safety category for gas | None |
Explosion safety category for dust | None |
Construction type housing | Standard construction |
Max. output current at protected output | 20 |
Mechanical mounting condition for sensor | Concise |
With monitoring function downstream switching devices | No |
Supply voltage | 24 - 24 |
Category according to EN 954-1 | 1 |
Type of actuation | Metallic Target |
Type of interface | None |
Width sensor | 26 |
Compression-resistant | No |
Diameter sensor | 0 |
Height of sensor | 40 |
Length of sensor | 26 |
Performance level acc. to EN ISO 13849-1 | None |
Interference resistance to magnetic fields | Immune against magnetic DC-field |
SIL according to IEC 61508 | None |
