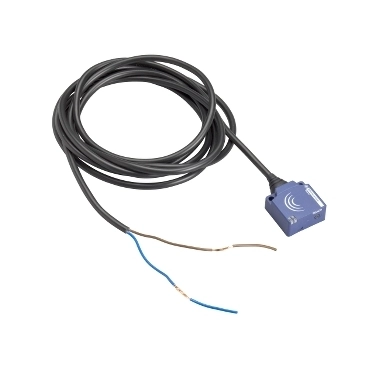

Induktivni senzor XS8 26x26x13, PBT, Sn 15 mm – 24.. 240 V AC/DC – kabel 2m

Cijena (bez PDV-a)

112,03

Šifra artikla: XS8E1A1MAL2

Raspoloživost: Na upit

Additional information

Tip

Induktivni senzor

Materijal

PBT

Sn

15mm

Napajanje (V)

24.. 240 V AC/DC

Priključak

kabel 2m

Voltage type DC
Cascadable No
Material housing Plastic
Suitable for safety functions No
Coating housing Other
Switching frequency 2,000
Switching distance 15
Number of semiconductor outputs with signalling function 0
Number of contact energized outputs with signalling function 0
Number of protected semiconductor outputs 0
Number of protected contact energized outputs 0
Type of interface for safety communication None
Type of electric connection Cable
Type of switching output Two-wire
Type of switch function Normally open contact
Rated control supply voltage Us at AC 50HZ 0 - 0
Rated control supply voltage Us at AC 60HZ 0 - 0
Rated control supply voltage Us at DC 12 - 24
Explosion safety category for gas None
Explosion safety category for dust None
Construction type housing Special construction
Max. output current at protected output 200
Mechanical mounting condition for sensor Not flat
With monitoring function downstream switching devices No
Supply voltage 12 - 24
Category according to EN 954-1 1
Type of actuation Other
Type of interface None
Width sensor 26
Compression-resistant No
Diameter sensor 0
Height of sensor 26
Length of sensor 13
Performance level acc. to EN ISO 13849-1 None
Interference resistance to magnetic fields Immune against magnetic DC- and AC-field
SIL according to IEC 61508 None
