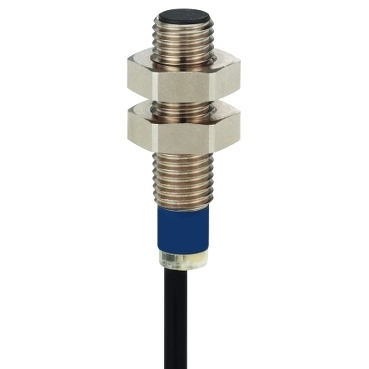

Induktivni senzor XS5, Ø M8, 51mm (L), Sn=1.5mm, 1 NC, NPN, 12-48 VDC, kabel 2m

Cijena (bez PDV-a)

56,43

Šifra artikla: XS508BLNBL2

Raspoloživost: Na upit

Additional information

Tip

Induktivni senzor

Materijal

Nehrđajući čelik

Sn

1,5mm

Napajanje (V)

12.. 48 V DC

Voltage type DC
Cascadable No
Material housing Metal
Suitable for safety functions No
Coating housing Other
Switching frequency 5,000
Switching distance 2
Number of semiconductor outputs with signalling function 1
Number of contact energized outputs with signalling function 0
Number of protected semiconductor outputs 1
Number of protected contact energized outputs 0
Type of interface for safety communication None
Type of electric connection Cable
Type of switching output NPN
Type of switch function Breaker contact
Rated control supply voltage Us at AC 50HZ 0 - 0
Rated control supply voltage Us at AC 60HZ 0 - 0
Rated control supply voltage Us at DC 12 - 48
Explosion safety category for gas None
Explosion safety category for dust None
Construction type housing Cylinder, screw-thread
Max. output current at protected output 200
Mechanical mounting condition for sensor Concise
With monitoring function downstream switching devices No
Supply voltage 12 - 48
Category according to EN 954-1 1
Type of actuation Metallic Target
Type of interface None
Width sensor 0
Compression-resistant No
Diameter sensor 8
Height of sensor 0
Length of sensor 51
Performance level acc. to EN ISO 13849-1 None
Interference resistance to magnetic fields Immune against magnetic DC-field
SIL according to IEC 61508 None
