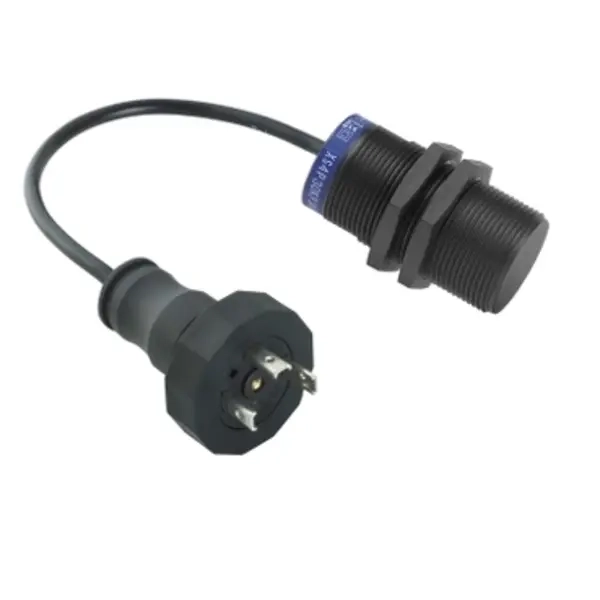

Induktivni senzor XS4, Ø M30, 62mm (L), Sn=15mm, 1 NO, 24-240 VAC, kabel 0.15m

Additional information

Voltage type	AC/DC
Cascadable	No
Material housing	Plastic
Suitable for safety functions	No
Coating housing	Other
Switching frequency	1,000
Switching distance	15
Number of semiconductor outputs with signalling function	1
Number of contact energized outputs with signalling function	0
Number of protected semiconductor outputs	0
Number of protected contact energized outputs	0
Type of interface for safety communication	None
Type of electric connection	Other
Type of switching output	Two-wire
Type of switch function	Normally open contact
Rated control supply voltage Us at AC 50HZ	24 - 240
Rated control supply voltage Us at AC 60HZ	24 - 240
Rated control supply voltage Us at DC	24 - 240
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cylinder, screw-thread
Max. output current at protected output	200
Mechanical mounting condition for sensor	Not flat
With monitoring function downstream switching devices	No
Supply voltage	24 - 240
Category according to EN 954-1	1
Type of actuation	Metallic Target
Type of interface	None
Width sensor	0
Compression-resistant	No
Diameter sensor	30
Height of sensor	0
Length of sensor	60
Performance level acc. to EN ISO 13849-1	None
Interference resistance to magnetic fields	Immune against magnetic DC- and AC-field
SIL according to IEC 61508	None
