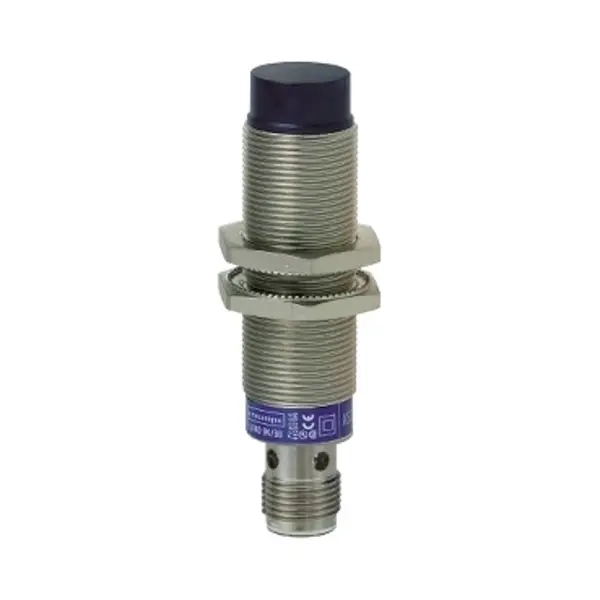

Induktivni senzor XS2, Ø M18, 72mm (L), Sn=8mm, 1 NO/1 NC, PNP/NPN, 12-24 VDC, M12

Cijena (bez PDV-a)

66,08€

Šifra artikla: XS2M18KP340D

Raspoloživost: Na upit

Additional information

Voltage type	DC
Cascadable	No
Material housing	Metal
Suitable for safety functions	No
Coating housing	Nickel-plated
Switching frequency	2,000
Switching distance	8
Number of semiconductor outputs with signalling function	1
Number of contact energized outputs with signalling function	0
Number of protected semiconductor outputs	1
Number of protected contact energized outputs	0
Type of interface for safety communication	None
Type of electric connection	Connector M12
Type of switching output	PNP/NPN
Type of switch function	Programmable/configurable
Rated control supply voltage Us at AC 50HZ	0 - 0
Rated control supply voltage Us at AC 60HZ	0 - 0
Rated control supply voltage Us at DC	12 - 24
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cylinder, screw-thread
Max. output current at protected output	200
Mechanical mounting condition for sensor	Not flat
With monitoring function downstream switching devices	No
Supply voltage	12 - 24
Category according to EN 954-1	1
Type of actuation	Metallic Target
Type of interface	None
Width sensor	0
Compression-resistant	No
Diameter sensor	0
Height of sensor	18
Length of sensor	70
Performance level acc. to EN ISO 13849-1	None
Interference resistance to magnetic fields	Immune against magnetic DC-field
SIL according to IEC 61508	None
