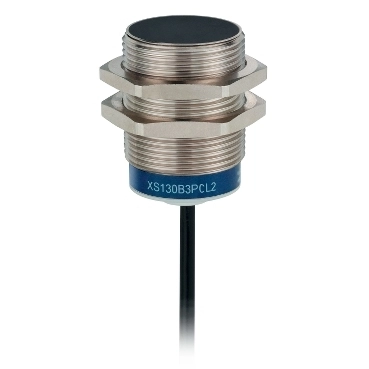

Induktivni senzor XS1, Ø M30, 45mm (L), Sn=15mm, 1 NO + 1 NC, PNP, 12-24 VDC, kabel 2m

Additional information

Tip	Pribor

Voltage type	DC
Cascadable	No
Material housing	Metal
Suitable for safety functions	Yes
Coating housing	Nickel-plated
Switching frequency	1,000
Switching distance	15
Number of semiconductor outputs with signalling function	2
Number of contact energized outputs with signalling function	0
Number of protected semiconductor outputs	2
Number of protected contact energized outputs	0
Type of interface for safety communication	Other
Type of electric connection	Cable
Type of switching output	PNP
Type of switch function	Other
Rated control supply voltage Us at AC 50HZ	0 - 0
Rated control supply voltage Us at AC 60HZ	0 - 0
Rated control supply voltage Us at DC	12 - 24
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cylinder, screw-thread
Max. output current at protected output	200
Mechanical mounting condition for sensor	Concise
With monitoring function downstream switching devices	No
Supply voltage	12 - 24
Category according to EN 954-1	1
Type of actuation	Metallic Target
Type of interface	None
Width sensor	0
Compression-resistant	No
Diameter sensor	30
Height of sensor	30
Length of sensor	45
Performance level acc. to EN ISO 13849-1	Level d
Interference resistance to magnetic fields	Immune against magnetic DC-field
SIL according to IEC 61508	2
