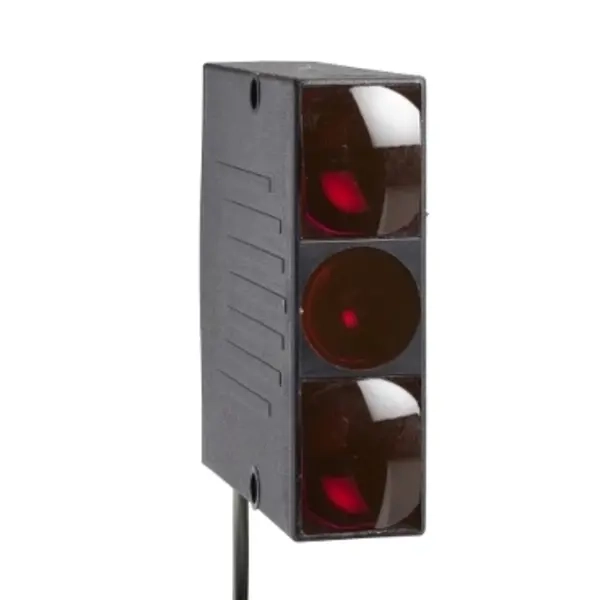

Fotoelektrični senzor, XUY, BGS, 2 kanala, Sn 600 mm, 12..24 V DC, kabel od 2 m

Cijena (bez PDV-a)

308,71

Šifra artikla: XUYPS2945S

Raspoloživost: Na upit

Dodatne informacije

Tip

Fotoelektrični senzor

Sn

600mm

Napajanje (V)

12..24 V DC

Priključak

kabel od 2 m

Voltage type DC
Max. output current 2
Material housing Plastic
Suitable for safety functions No
Adjustment range 0 - 0
Ambient temperature 0 - 50
With time function No
Switching frequency 370
Number of semiconductor outputs with signalling function 0
Number of contact energized outputs with signalling function 0
Number of protected semiconductor outputs 0
Number of protected contact energized outputs 0
Type of interface for safety communication Other
Type of electric connection Cable
Type of switching output PNP/NPN
Type of switch function Programmable/configurable
Rated control supply voltage Us at AC 50HZ 0 - 0
Rated control supply voltage Us at AC 60HZ 0 - 0
Rated control supply voltage Us at DC 0 - 0
Operation agent-safety class Safety class 0
Setting procedure Other
Explosion safety category for gas Other
Explosion safety category for dust Other
Construction type housing Cuboid
Laser protection class Other
Type of light Green light
Light dot 0
Max. output current at protected output 2
Min. reflector distance 0
With monitoring function downstream switching devices No
With restart blockage No
Time of reaction 0
Transmission range of the safety field 0
Switching voltage of OSSD at state "high" 0
Type of safety acc. IEC 61496-1 1
Pre failure notice No
Wavelength of the sensor 0
Material of optical surface Glass
Material of cable sheath Other
Degree of protection (IP) IP65
Analogue output 0 V ... 10 V No
Analogue output 0 mA ... 20 mA No
Analogue output -10 V ... +10 V No
Analogue output 4 mA ... 20 mA No
AWG-number 0
Width sensor 0
Diameter sensor 0
Height of sensor 0
With communication interface analog No
With communication interface AS-Interface No
With communication interface CANOpen No
With communication interface DeviceNet No
With communication interface Ethernet No
With communication interface INTERBUS No
With communication interface PROFIBUS No
With communication interface RS-232 No
With communication interface RS-422 No
With communication interface RS-485 No
With communication interface SSD No
With communication interface SSI No
Length of sensor 0
Max. switching distance 600
Reflector included No
With other analog output No
Switch function Light switching
Rated switching distance 600
Operating distance 50 - 600
Triangulation Background fade-out
