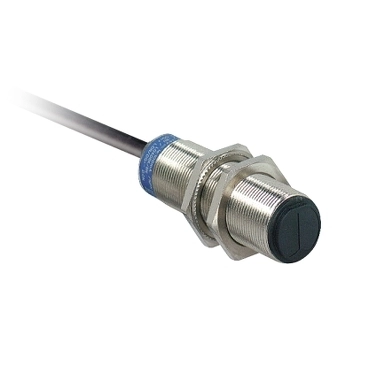

Fotoelektrični senzor, XU2, prolazna zraka, Sn 15 m, 24.. 240 V AC/DC, kabel od 2 m
Cijena (bez PDV-a)
178,25€
Raspoloživost: Na upit
Additional information
| Tip | Fotoelektrični senzor |
|---|---|
| Sn | 15m |
| Napajanje (V) | 24.. 240 V AC/DC |
| Priključak | kabel od 2 m |
| Voltage type | AC/DC |
|---|---|
| Max. output current | 200 |
| Material housing | Metal |
| Suitable for safety functions | No |
| Ambient temperature | -25 - 55 |
| Opening angle | 0 |
| With time function | No |
| Switching frequency | 25 |
| Number of semiconductor outputs with signalling function | 1 |
| Number of contact energized outputs with signalling function | 0 |
| Number of protected semiconductor outputs | 0 |
| Number of protected contact energized outputs | 0 |
| Type of interface for safety communication | Other |
| Type of electric connection | Cable |
| Type of switching output | Two-wire |
| Type of switch function | Breaker contact (NC) |
| Rated control supply voltage Us at AC 50HZ | 24 - 240 |
| Rated control supply voltage Us at AC 60HZ | 24 - 240 |
| Rated control supply voltage Us at DC | 24 - 240 |
| Operation agent-safety class | Safety class 0 |
| Setting procedure | Manual adjustment |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cylinder, screw-thread |
| Laser protection class | Other |
| Type of light | Infrared light |
| Light dot | 0 |
| Scope of delivery of the one-way system | Transmitter and receiver |
| Max. output current at protected output | 0 |
| Min. reflector distance | 0 |
| With monitoring function downstream switching devices | No |
| With restart blockage | No |
| Time of reaction | 20 |
| Transmission range of the safety field | 0 |
| Switching voltage of OSSD at state "high" | 0 |
| Type of safety acc. IEC 61496-1 | 1 |
| Pre failure notice | No |
| Wavelength of the sensor | 0 |
| Material of optical surface | Plastic |
| Material of cable sheath | Other |
| Degree of protection (IP) | IP67 |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
| AWG-number | 0 |
| Width sensor | 0 |
| Diameter sensor | 18 |
| Height of sensor | 0 |
| With communication interface analog | No |
| With communication interface AS-Interface | No |
| With communication interface CANOpen | No |
| With communication interface DeviceNet | No |
| With communication interface Ethernet | No |
| With communication interface INTERBUS | No |
| With communication interface PROFIBUS | No |
| With communication interface RS-232 | No |
| With communication interface RS-422 | No |
| With communication interface RS-485 | No |
| With communication interface SSD | No |
| With communication interface SSI | No |
| Length of sensor | 82 |
| Max. switching distance | 20,000 |
| Reflector included | No |
| With other analog output | No |
| Switch function | Dark switching |
| Rated switching distance | 15,000 |
