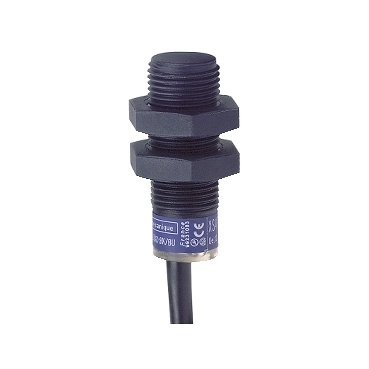

DETEKTOR INDUKTIVNI

Dodatne informacije

Voltage type	DC
Cascadable	No
Material housing	Other
Suitable for safety functions	No
Coating housing	Other
Switching frequency	0
Switching distance	4
Number of semiconductor outputs with signalling function	1
Number of contact energized outputs with signalling function	0
Number of protected semiconductor outputs	1
Number of protected contact energized outputs	0
Type of interface for safety communication	None
Type of electric connection	Connector M12
Type of switching output	Other
Type of switch function	Other
Rated control supply voltage Us at AC 50HZ	0 - 0
Rated control supply voltage Us at AC 60HZ	0 - 0
Rated control supply voltage Us at DC	12 - 48
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cylinder, screw-thread
Max. output current at protected output	100
Mechanical mounting condition for sensor	Not flat
With monitoring function downstream switching devices	No
Supply voltage	12 - 48
Category according to EN 954-1	1
Type of actuation	Metallic Target
Type of interface	None
Width sensor	0
Compression-resistant	No
Diameter sensor	0
Height of sensor	12
Length of sensor	0
Performance level acc. to EN ISO 13849-1	None
Interference resistance to magnetic fields	Immune against magnetic DC-field
SIL according to IEC 61508	None
