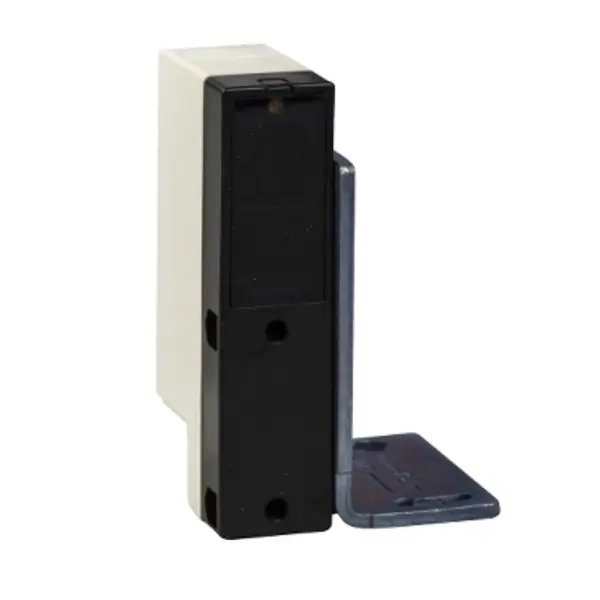

DETEKTOR FOTOELEKTRIČNI

Additional information

Tip	Fotoelektrični senzor
Sn	8m
Napajanje (V)	12..24 V DC
Priključak	M12

Voltage type	DC
Max. output current	200
Material housing	Plastic
Suitable for safety functions	No
Ambient temperature	-25 - 55
Opening angle	0
With time function	No
Switching frequency	250
Number of semiconductor outputs with signalling function	1
Number of contact energized outputs with signalling function	0
Number of protected semiconductor outputs	0
Number of protected contact energized outputs	0
Type of interface for safety communication	Other
Type of electric connection	Connector M12
Type of switching output	PNP
Type of switch function	Programmable/configurable
Rated control supply voltage Us at AC 50HZ	0 - 0
Rated control supply voltage Us at AC 60HZ	0 - 0
Rated control supply voltage Us at DC	12 - 24
Operation agent-safety class	Safety class 0
Setting procedure	Other
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Laser protection class	Other
Type of light	Infrared light
Light dot	0
Scope of delivery of the one-way system	Receiver
Max. output current at protected output	100
Min. reflector distance	5,000
With monitoring function downstream switching devices	No
With restart blockage	No
Time of reaction	2
Transmission range of the safety field	0
Switching voltage of OSSD at state "high"	0
Type of safety acc. IEC 61496-1	1
Pre failure notice	No
Wavelength of the sensor	0
Material of optical surface	Plastic
Material of cable sheath	Other
Degree of protection (IP)	IP67
Analogue output 0 V ... 10 V	No
Analogue output 0 mA ... 20 mA	No
Analogue output -10 V ... +10 V	No
Analogue output 4 mA ... 20 mA	No
AWG-number	0
Width sensor	18
Diameter sensor	0
Height of sensor	70
With communication interface analog	No
With communication interface AS-Interface	No
With communication interface CANOpen	No
With communication interface DeviceNet	No
With communication interface Ethernet	No
With communication interface INTERBUS	No
With communication interface PROFIBUS	No
With communication interface RS-232	No
With communication interface RS-422	No
With communication interface RS-485	No
With communication interface SSD	No
With communication interface SSI	No
Length of sensor	35
Max. switching distance	11,000
Reflector included	No
With other analog output	No
Switch function	Light-/dark switching
Rated switching distance	8,000
