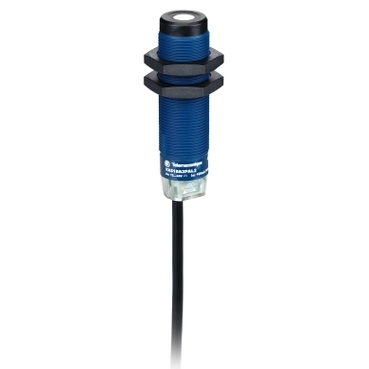

Cilindrični ultrazvučni senzor M18, Sn 0,5 m, NO, kabel od 2 m

Dodatne informacije

Tip	Ultrazvučni senzor

Voltage type	DC
Max. output current	100
Material housing	Plastic
Ambient temperature	-20 - 65
Switching frequency	40
Type of analogy output	Other
Type of electric connection	Cable
Type of switching output	PNP
Type of switch function	Normally open contact (NO)
Blind zone	51
Setting procedure	Parameterization
Explosion safety category for gas	None
Explosion safety category for dust	Other
Construction type housing	Cylinder, screw-thread
Standard for interfaces	Other
No load current	40
Relative linearity deflection	0
Relative repeat accuracy	1
Synchronization possible	No
Supply voltage	12 - 24
Material active area of sensor	Plastic
Material of cable sheath	Other
AWG-number	0
Width sensor	18
Diameter sensor	18
Height of sensor	18
Length of sensor	64
Adjustable distance	51 - 508
Measuring range length	51 - 508
