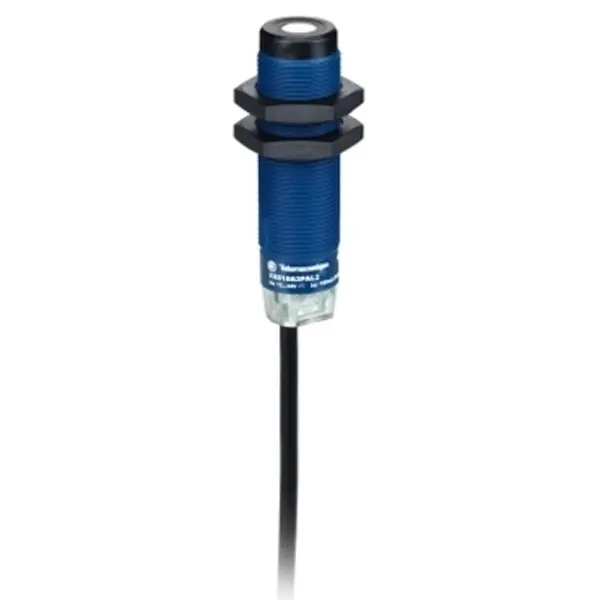

Cilindrični ultrazvučni senzor M18, Sn 0,5 m, NO, kabel od 2 m

Cijena (bez PDV-a)

161,79

Šifra artikla: XX518A3NAL2

Raspoloživost: Na upit

Additional information

Tip

Ultrazvučni senzor

Voltage type DC
Max. output current 100
Material housing Plastic
Ambient temperature -20 - 65
Switching frequency 40
Type of analogy output Other
Type of electric connection Cable
Type of switching output NPN
Type of switch function Normally open contact (NO)
Blind zone 51
Setting procedure Parameterization
Explosion safety category for gas None
Explosion safety category for dust Other
Construction type housing Cylinder, screw-thread
Standard for interfaces Other
No load current 40
Relative linearity deflection 0
Relative repeat accuracy 1
Synchronization possible No
Supply voltage 12 - 24
Material active area of sensor Plastic
Material of cable sheath Other
AWG-number 0
Width sensor 18
Diameter sensor 18
Height of sensor 18
Length of sensor 64
Adjustable distance 51 - 508
Measuring range length 51 - 508
