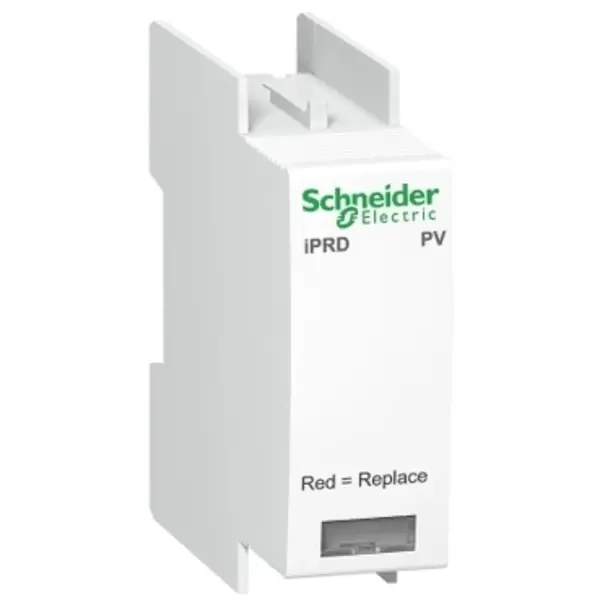

Cartridge C40-1000 PV for surge arrester iPRD-DC

Additional information

Tip	Pribor

Mounting method	Other
With remote signalling contact	No
Construction size	2 modular spacing
Voltage protection level	2
Type of poles
Max. continuous voltage AC	460
Nominal discharge surge current (8/20)	15
Nominal voltage AC	0
Nominal voltage DC	1,000
System configuration	DC
Category type 2	Yes
Voltage protection level L-N	0
Signalling at the device	Optic
Max. continuous voltage DC	1,000
Degree of protection (IP)	IP20
Short-circuit-proof	Yes
Max. PV-voltage	1,000
Voltage protection level N-PE	0
Integrated backup fuse	Yes
Max. conductor cross section solid (solid, stranded)	25
Max. conductor cross section flexible (fine-strand)	16
