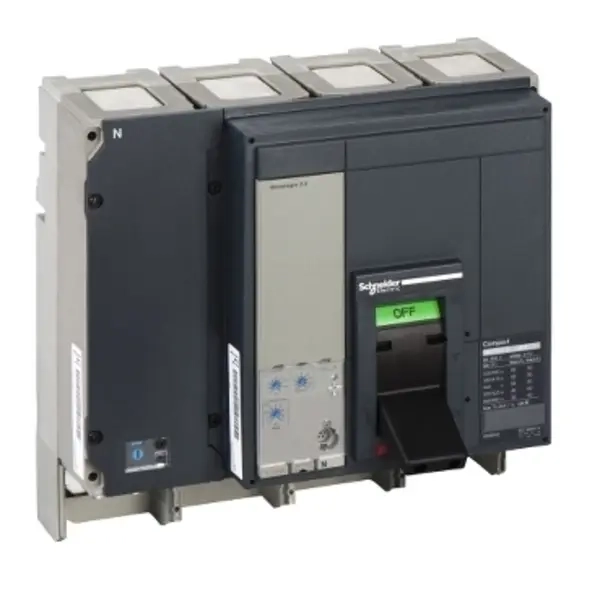

AD:Prekidač Compact NS800N – Micrologic 2.0 E – 800 A – 4P4D

Additional information

Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	800
Number of poles	4
Overload release current setting	320 - 800
Number of auxiliary contacts as change-over contact	0
Rated voltage	690 - 690
Degree of protection (IP)	IP40
Position of connection for main current circuit
Motor drive integrated	No
Type of electrical connection of main circuit	Screw connection
Type of control element	Toggle
Switched-off indicator available	Yes
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz	50
Adjustment range short-term delayed short-circuit release	- - -
Adjustment range undelayed short-circuit release	1200 - 8000
Suitable for DIN rail (top hat rail) mounting	No
Integrated earth fault protection	Yes
Motor drive optional	Yes
With under voltage release	No
Device construction	Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional	No
Complete device with protection unit	Yes
