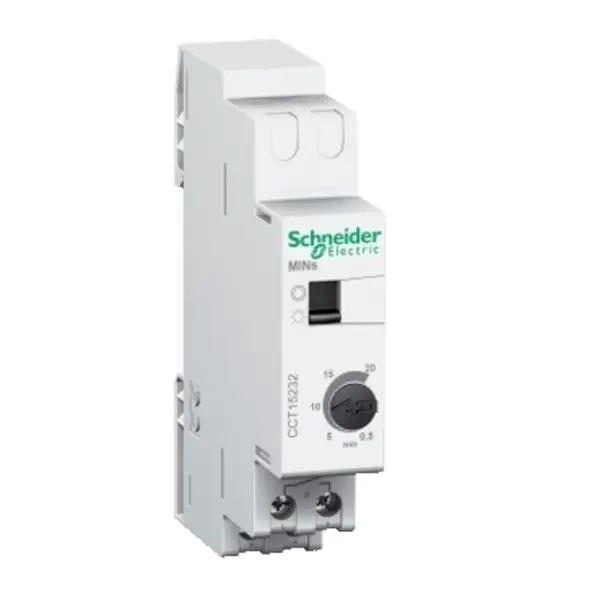

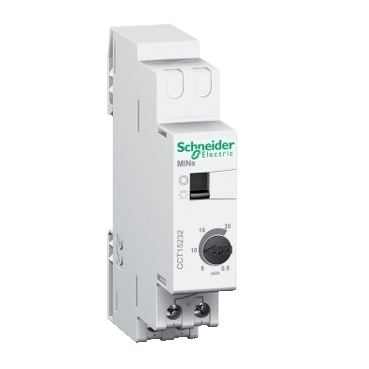

Acti 9, MINs, tihi elektronički brojač, mogućnost podešavanja od 0,5 do 20 minuta

Mounting method	DIN rail
Function	Electronic
Built-in depth	66
Number of normally open contacts	1
Number of normally closed contacts	0
Number of change-over contacts	0
Release-delay	0.5 - 20
Width in number of modular spacings	1
Control voltage 1	230 - 230
Control voltage 2	- - -
Type of control voltage 1	AC
Type of control voltage 2
Frequency control voltage 1	50 - 60
Frequency control voltage 2	50 - 50
Wiring system	3 and 4 wire configuration
Pre-warning of switching-off	None
Repetitive	None
Voltage type of supply voltage	AC
Supply voltage	230 - 230
Max. switching current (cos phi = 0.6)	10
Max. incandescent lamp load	2,300
Max. load fluorescent lamp	2,300
Max. load fluorescent lamp (Duo circuit)	2,300
Max. load fluorescent lamp (parallel compensated)	400
Rated switch current	16
Push button glow-lamp current	0
Current surge function selectable	No
