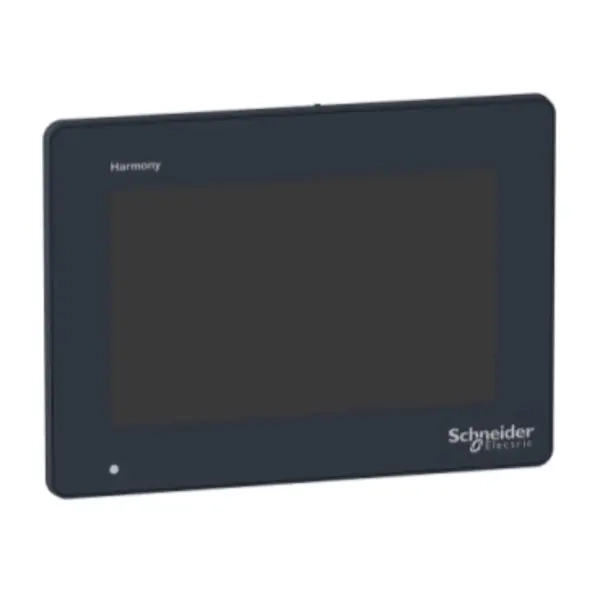

7W napredni dodirni zaslon WVGA
Cijena (bez PDV-a)
499,00€
Raspoloživost: Na upit
Podatkovni list| Built-in depth | 36 |
|---|---|
| Suitable for safety functions | No |
| With hard disc | No |
| With CD-RW drive | No |
| Screen diagonal | 7 |
| Operation temperature | 0 - 60 |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for MODBUS | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Number of pixels, horizontal | 800 |
| Number of pixels, vertical | 480 |
| With touch screen | Yes |
| Degree of protection (IP), front side | IP67 |
| Max. main memory | 0 |
| With CD-ROM drive | No |
| DVD-drive available | No |
| DVD RW drive available | No |
| With floppy disc drive | No |
| With other storage media | No |
| Customer individual configuration | Yes |
| Number of free AGP-slots | 0 |
| Number of free PCI-slots | 0 |
| Number of free ISA-slots | 0 |
| Number of free PCMCIA-slots | 0 |
| Number of HW-interfaces SCSI | 0 |
| Number of HW-interfaces PS2 | 0 |
| Integrated keyboard | No |
| Number of function buttons | 0 |
| Mouse-cursor control integrated | No |
| Width of the front | 204 |
| Height of the front | 149 |
| Rail mounting possible | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of HW-interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Front build in possible | Yes |
| Mounting type, gallows mounting | No |
| Rack-assembly possible | No |
| Mounting type, table foot | No |
| Wall mounting/direct mounting | Yes |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supply voltage AC 50 Hz | 0 - 0 |
| Supply voltage AC 60 Hz | 0 - 0 |
| Supply voltage DC | 12 - 24 |
| Preinstalled operating system | None |
| Type of display | TFT |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| Number of buttons with LED | 0 |
| Number of system buttons | 0 |
