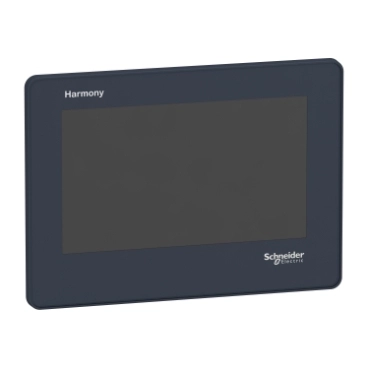

4.3 Inch TFT 64K colors 480×272 RS232C
Cijena (bez PDV-a)
390,00€
Raspoloživost: Na upit
Podatkovni list| Built-in depth | 0 |
|---|---|
| Suitable for safety functions | No |
| Screen diagonal | 4 |
| Operation temperature | 0 - 50 |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 2 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for MODBUS | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| With colour display | Yes |
| Number of colours of the display | 65,536 |
| Number of pixels, horizontal | 480 |
| Number of pixels, vertical | 272 |
| With touch screen | Yes |
| Number of function buttons, programmable | 0 |
| With numeric keyboard | No |
| With alpha numeric keyboard | No |
| Useful project memory/user memory | 27,136 |
| With message indication | Yes |
| With message system (incl. buffer and confirmation) | Yes |
| Process value representation (output) possible | Yes |
| Process default value (input) possible | Yes |
| With recipes | Yes |
| Number of password levels | 0 |
| Printer output available | No |
| Number of online languages | 6 |
| Additional software components, loadable | Yes |
| Degree of protection (IP), front side | IP65 |
| With SW interfaces | Yes |
| Width of the front | 0 |
| Height of the front | 0 |
| Rail mounting possible | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of HW-interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Wall mounting/direct mounting | Yes |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | Yes |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supply voltage AC 50 Hz | 0 - 0 |
| Supply voltage AC 60 Hz | 0 - 0 |
| Supply voltage DC | 24 - 24 |
| Type of display | TFT |
| Number of grey-scales/blue-scales of display | 16 |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| Number of buttons with LED | 0 |
| Number of system buttons | 0 |
